| Brand Name : | Jinze |

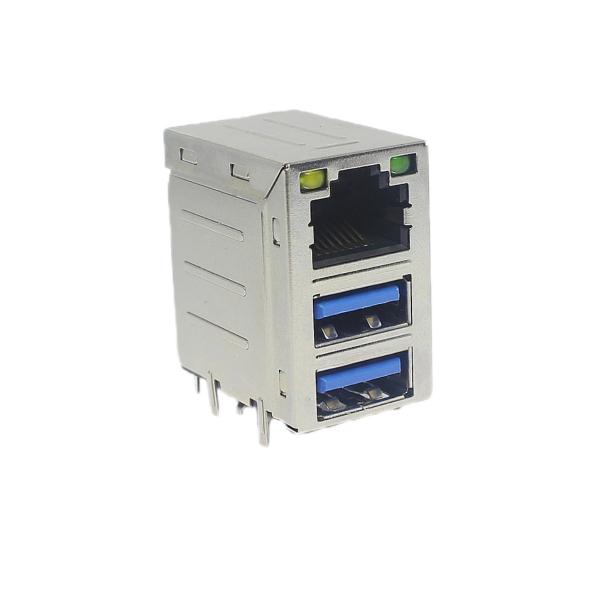

| Model Number : | RJ25A-PBA10-TRA |
| Certification : | ISO9001/ROHS/CE/FCC |
| Price : | Negotiation |
| Payment Terms : | T/T |
| Supply Ability : | 80000pcs/ Day |
| Delivery Time : | 15-25 Days |
Speciafications
| RJ45 Housing: | High Temperature Thermo Plastics, PBT, BK, UL94V-0 |
| USB Housing: | High Temperature Thermo Plastics, PBT, Blue, UL94V-0 |
| Insert Base: | High Temperature Thermo Plastics, PBT, BK+Blue, UL94V-0 |
| Contact: | Copper Alloy |
| Shell: | SUS |
| Contact: | Tin Plating 100u" on Solder tail area |
| USB Contact: | Gold Plating Flash on Contact area, 30u" min Ni underplating over all |
| Voltage Current Rating: | 1.5 AMP. 30V AC |
| Insulation Resistance: | 1000MΩ Min. |
| Contact Resistance: | 30MΩ Max. |
| Dielectric Withstanding Voltage: | 500 V AC |
| Dimension: | 19.05mm*27.50mm*31mm |
| Operating Temperature: | -45°c to +85°c |
| LED Option | Green/Yellow |
Drawings
2D Drawings:
RJ25A-PBA10-TRA.pdf, if you need the Drawing, pls download it
